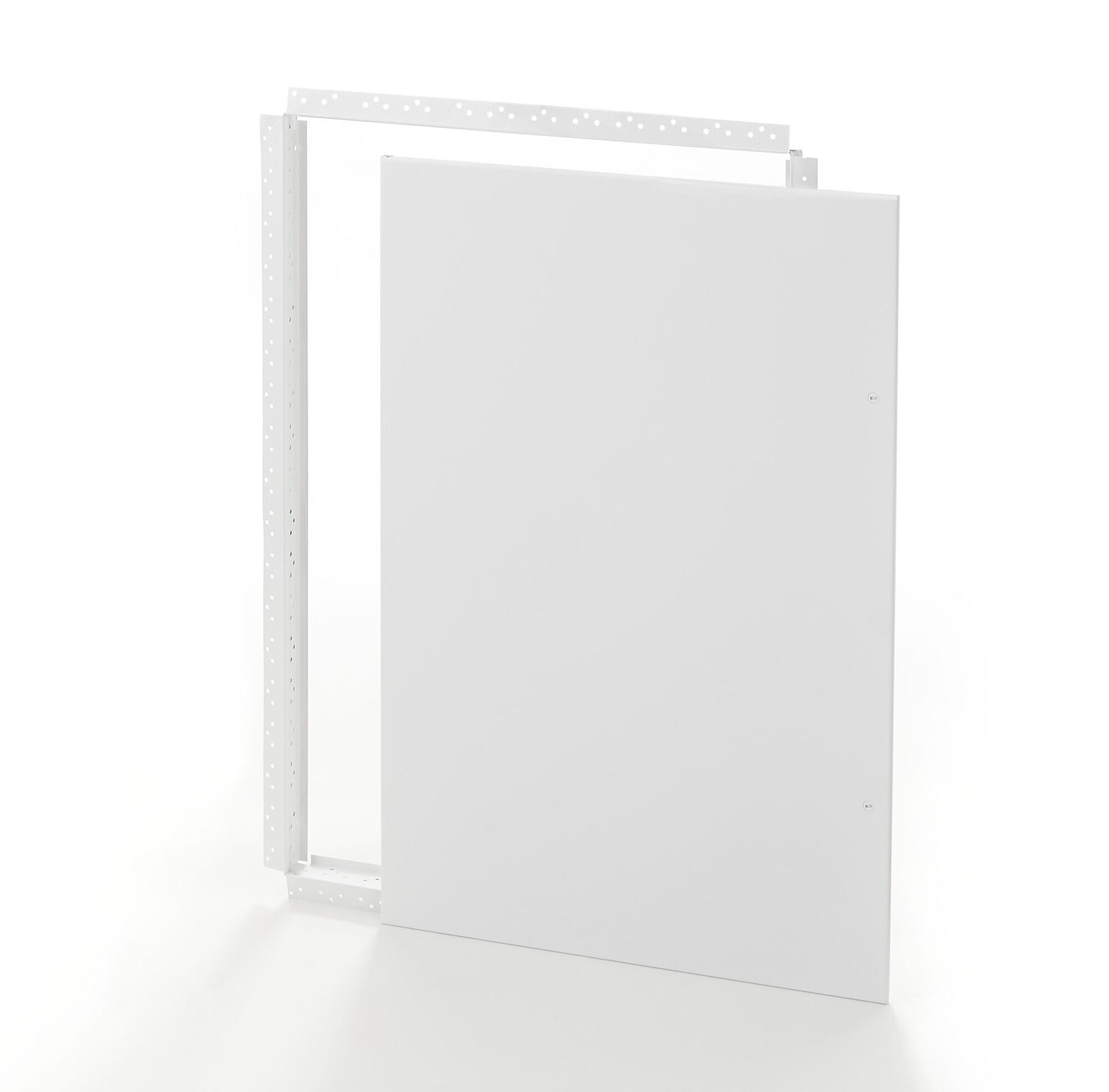

AHR-gyp-00 porte detachee jpg
AHR-gyp-00 entrouvert jpg

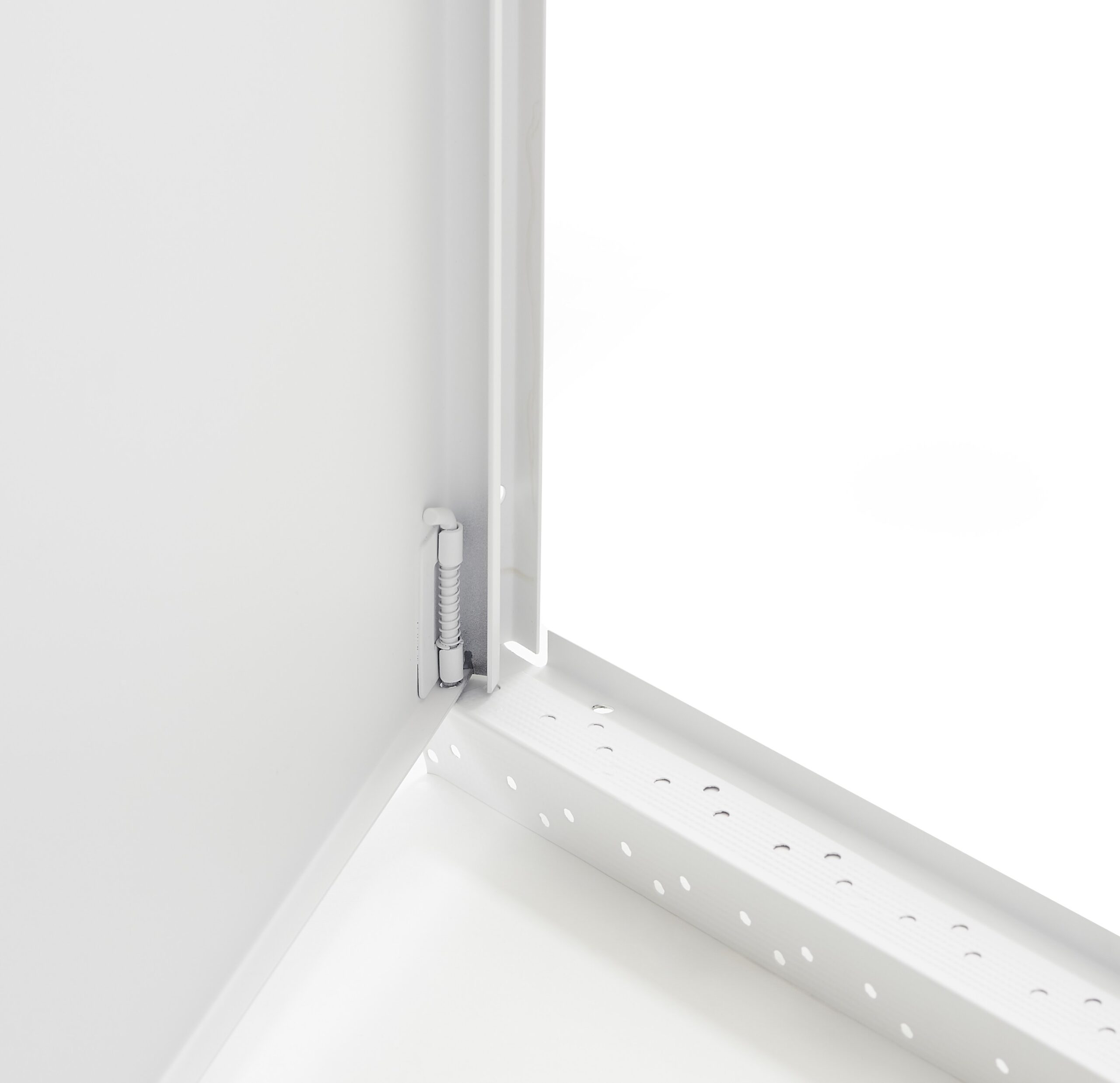

AHR-gyp-00 penture 1 zoom jpg
35-Screwdriver cam latch
Back to all productsAHR-GYP-00

Flush Removable Access Door with Drywall Bead Flange

screwdriver-operated cam latch, concealed spring pin hinge

  • Installation Walls and ceilings
  • Material Cold rolled steel
  • Locking mechanism Screwdriver operated cam latch
  • Hinge Concealed spring pin hinge
  • Flange Drywall bead flange
  • Size Other sizes available upon request
More technical specificationsView availability

Quantity

Add to quote

Technical specifications and dimensions

  • Material

    16-gauge cold rolled steel door and frame.

  • Hinge

    Pin and spring pin hinge. Hinge location: Hinges must be located on the second dimension (height).

  • Locking mechanism

    Screwdriver operated cam latch in cold rolled steel.

  • Flange

    22-gauge galvanized steel, 1 ⅛" drywall bead flange.

  • Frame

    1 ½ " in depth, made of cold rolled steel.

  • Rough opening

    Door sizes + ¼ " or + 6mm.

  • Finish

    High quality white powder coat primer.

  • Packaging

    Individually wrapped, 1 door per box.

Contact us
Dimensions (Inches)Dimensions (Millimeters)Weight (LBS)Weight (KG)Number of locks
22 x 30558 x 76218.18.22
22 x 36558 x 91421.29.62
24 x 30609 x 76219.58.92
24 x 36609 x 91422.810.32
24 x 48609 x 121929.413.32
30 x 30762 x 76225.011.34
30 x 36762 x 91426.812.14
36 x 36914 x 91431.314.24
36 x 48914 x 121940.918.54
48 x 481219 x 121952.323.74

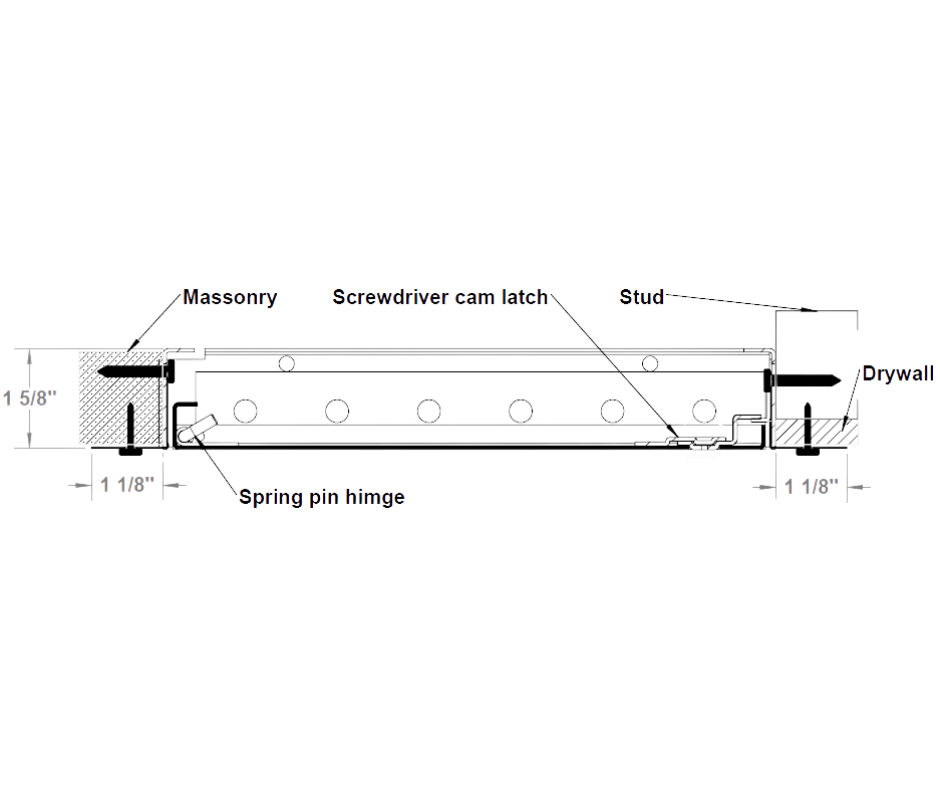

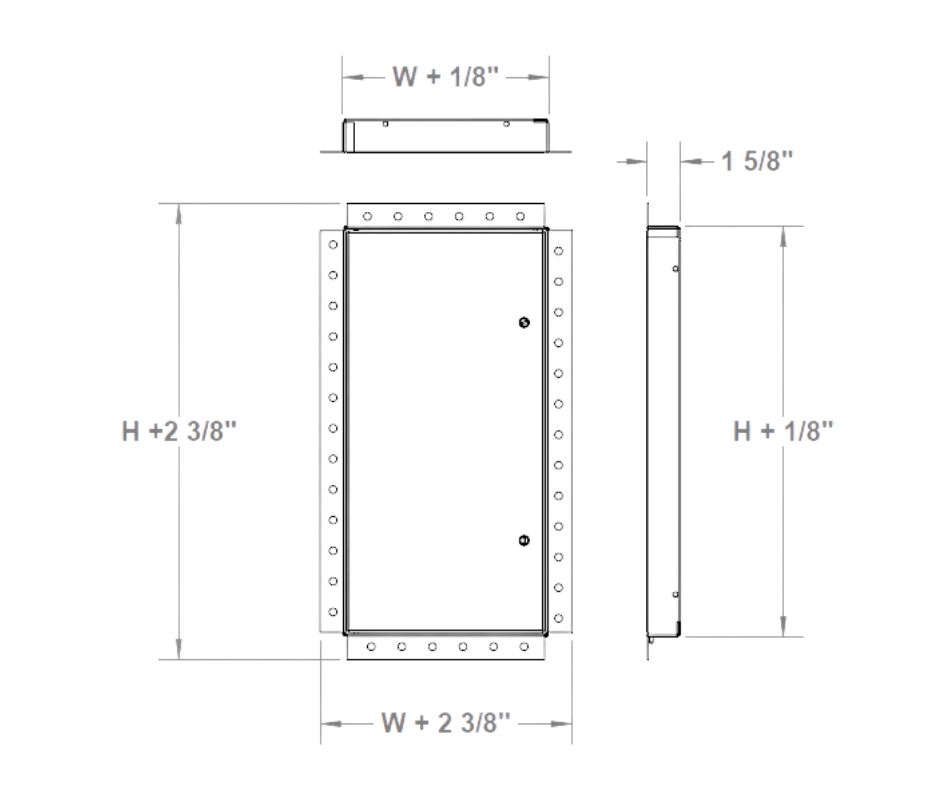

Technical drawings

Technical documentation

Availability

We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.

  • Stocked in Montreal
  • Stocked in Montreal & USA
  • Not in stock. 5 days lead-time.
Contact us
Dimensions
22 x 30
22 x 36
24 x 30
24 x 36
24 x 48
30 x 30
30 x 36
36 x 36
36 x 48
48 x 48
