AHA-PLY-10

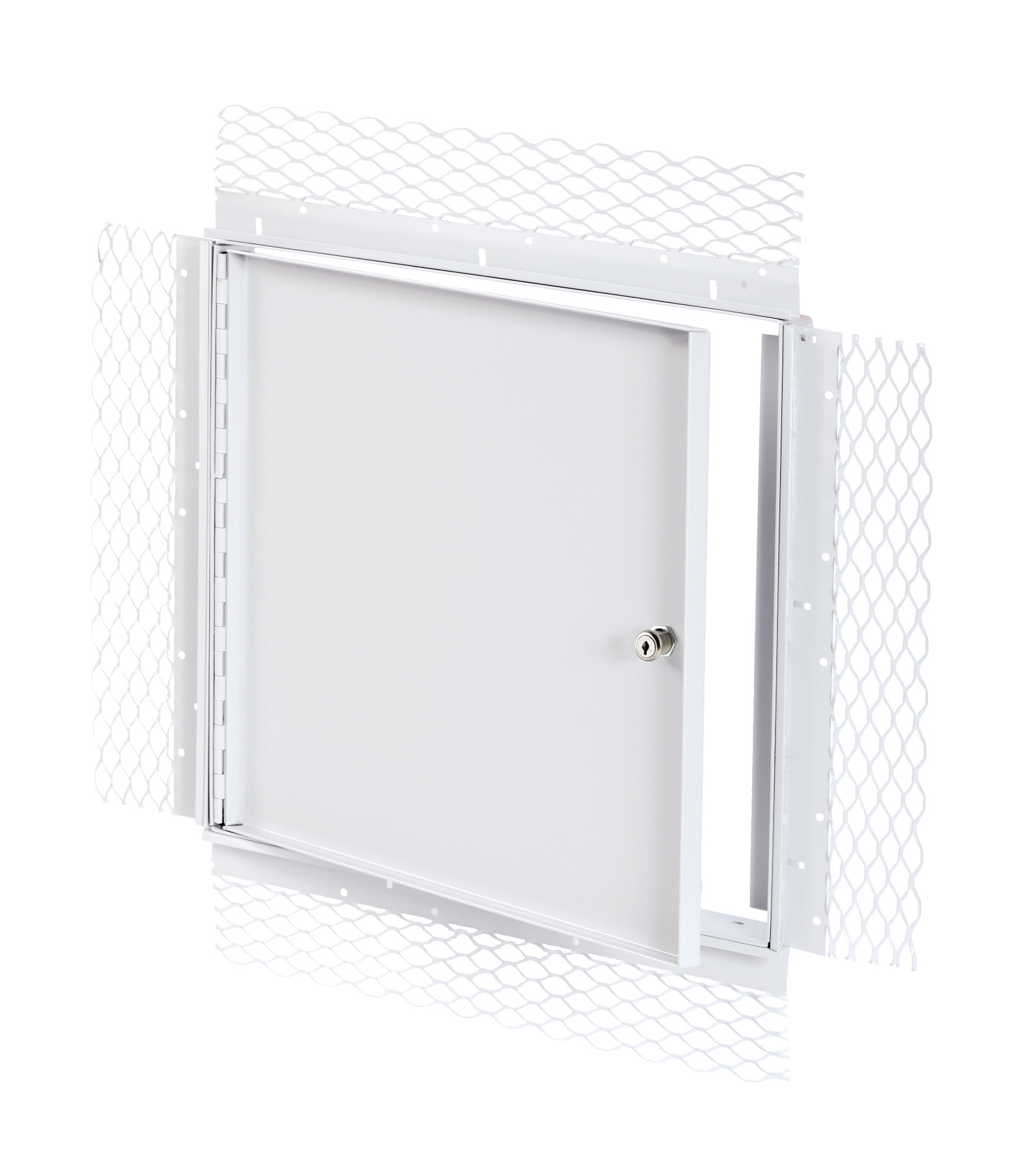

Recessed Access Door with Plaster Bead Flange
Key-operated cylinder cam latch, piano hinge
Designed with a plaster bead flange and a 5/8" recessed door, this panel accepts a drywall insert in order to blend in with the surface finish.
Technical specifications and dimensions
- Material
16 gauge cold rolled steel
- Hinge
Continous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Key-operated cylinder cam latch with two keys per lock
- Flange
22-gauge galvanized steel, 2 ¾" plaster bead flange
- Frame
1 5/8 " in depth, made of cold rolled steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 8 X 8 | 203 X 203 | 3.5 | 1.6 | 1 |
| * 12 X 12 | 304 X 304 | 6.5 | 3.0 | 1 |
| * 16 X 16 | 406 X 406 | 9.7 | 4.4 | 1 |
| * 18 X 18 | 457 X 457 | 11.7 | 5.3 | 1 |
| * 24 X 24 | 609 X 609 | 19.1 | 8.7 | 1 |
Technical drawings
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 8 X 8 | AHA-PLY-08X08-00-1 |
| 12 X 12 | AHA-PLY-12X12-00-1 |
| 16 X 16 | AHA-PLY-16X16-00-1 |
| 18 X 18 | AHA-PLY-18X18-00-1 |
| 24 X 24 | AHA-PLY-24X24-00-1 |
