PFN-SS-00

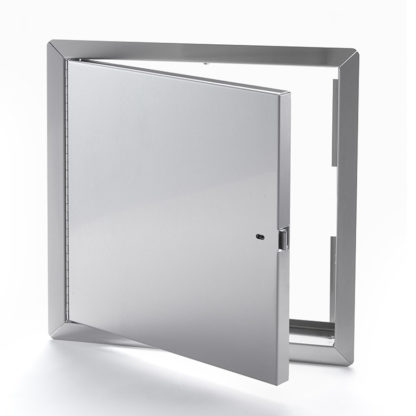

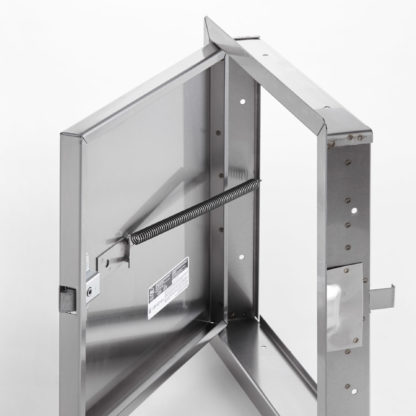

Fire-Rated Uninsulated Stainless Steel Access Door with Exposed Flange
self-latching tool-key operated slam latch and ring operated slam latch, piano hinge
The fire rated uninsulated access door, made of stainless steel, can be used on fire rated walls.
Technical specifications and dimensions
- Material
16 gauge stainless steel 304 #4
- Hinge
Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Self-latching tool-key operated slam latch and ring operated slam latch, both included.
- Flange
1" exposed flange
- Frame
2½ " in depth, made of stainless steel 304 #4
- Rough opening
Door sizes + ¼" or + 6mm
- Inside panel release
Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
- Finish
Stainless steel #4 (brushed finish)
- Packaging
Individually wrapped, 1 door per box.
- Fire rated access doors, for vertical use, are subject to the following:
- Vertical wall assemblies
Fire rated access doors, for vertical use, are subject to the following:
- Certification
UL 10B (2008) (R2020), NFPA 252 (2022), CAN/ULC S104 (2015) (R2020).
- Rating Achieved
3 hours, neutral/negative pressure
- Maximum size
48" x 48" (1219 mm x 1219 mm), maximum area of 2304 in², tolerance on height and width limitation is more or less 3" (76mm) as long as the area does not exceed 2304 in².
- Temperature rise
No rating achieved
- Vertical wall assemblies
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 8 x 8 | 203 x 203 | 6.1 | 2.8 | 1 |
| * 10 x 10 | 254 x 254 | 7.7 | 3.5 | 1 |
| * 12 x 12 | 304 x 304 | 9.4 | 4.3 | 1 |
| * 14 x 14 | 355 x 355 | 11.4 | 5.2 | 1 |
| * 16 x 16 | 406 x 406 | 13.2 | 6.0 | 1 |
| * 18 x 18 | 457 x 457 | 15.5 | 7.0 | 1 |
| * 22 x 22 | 558 x 558 | 20.4 | 9.3 | 1 |
| * 22 x 30 | 558 x 762 | 25.3 | 11.4 | 1 |
| * 22 x 36 | 558 x 914 | 29.8 | 13.5 | 2 |
| * 24 x 24 | 609 x 609 | 22.8 | 10.3 | 1 |
| * 24 x 36 | 609 x 914 | 31.5 | 14.3 | 2 |
| * 24 x 48 | 609 x 1219 | 39.5 | 17.7 | 2 |
| * 30 x 30 | 762 x 762 | 32.0 | 14.5 | 1 |
| * 32 x 32 | 812 x 812 | 35.9 | 16.3 | 2 |
| * 36 x 36 | 914 x 914 | 42.4 | 19.2 | 2 |
| * 48 x 48 | 1219 x 1219 | 62.9 | 28.1 | 2 |
Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 8 x 8 | PFN-SS-08X08-00 |
| 10 x 10 | PFN-SS-10X10-00 |
| 12 x 12 | PFN-SS-12X12-00 |
| 14 x 14 | PFN-SS-14X14-00 |
| 16 x 16 | PFN-SS-16X16-00 |
| 18 x 18 | PFN-SS-18X18-00 |
| 22 x 22 | PFN-SS-22X22-00 |
| 22 x 30 | PFN-SS-22X30-00 |
| 22 x 36 | PFN-SS-22X36-00 |
| 24 x 24 | PFN-SS-24X24-00 |
| 24 x 36 | PFN-SS-24x36-00 |
| * 24 x 48 | |
| 30 x 30 | PFN-SS-30x30-00 |
| 32 x 32 | PFN-SS-32X32-00 |
| 36 x 36 | PFN-SS-36X36-00 |
| * 48 x 48 |
