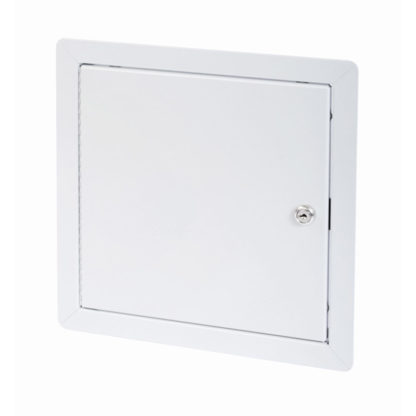

Medium-Security Flush Universal Access Door with Exposed Flange
Medium-Security Flush Universal Access Door with Exposed Flange
key-operated cylinder cam latch, piano hinge
Technical specifications and dimensions
- Material
14 gauge galvanneal steel
- Hinge
Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Key-operated cylinder cam latch with 2 keys per lock
- Flange
1" exposed flange
- Frame
1½ " in depth, made galvanized steel
- Rough opening
Door sizes + ¼" or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 12 x 12 | 304 x 304 | 6.8 | 3.1 | 1 |
| * 16 x 16 | 406 x 406 | 10.3 | 4.7 | 1 |
| * 18 x 18 | 457 x 457 | 12.5 | 5.7 | 1 |
| * 24 x 24 | 609 x 609 | 19.9 | 9.0 | 1 |
| * 24 x 30 | 609 x 762 | 24.9 | 11.3 | 2 |
| * 24 x 36 | 609 x 914 | 28.1 | 12.8 | 2 |
| * 36 x 36 | 914 x 914 | 39.8 | 18.1 | 2 |
Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 12 x 12 | MDS-12X12-00 |
| 16 x 16 | MDS-16X16-00 |
| 18 x 18 | MDS-18X18-00 |
| 24 x 24 | MDS-24X24-00 |
| 24 x 30 | MDS-24X30-00 |
| 24 x 36 | MDS-24X36-00 |
| 36 x 36 | MDS-36X36-00 |
