HHD-180

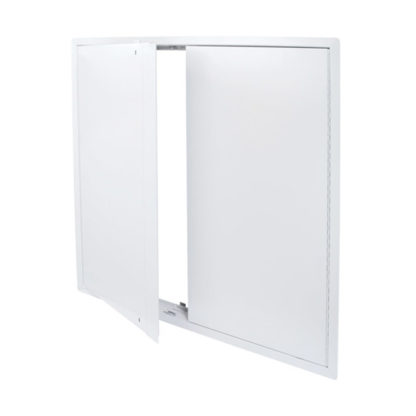

Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange
screwdriver-operated cylinder cam latch, piano hinge
Designed with a screwdriver-operated cam latch and double doors, this model is ideal for larger openings. Includes an inside panel release.
Technical specifications and dimensions
- Material
16-gauge cold rolled steel
- Hinge
Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Screwdriver-operated cylinder cam latch. Available for insulated aluminum access doors and large opening access doors.
- Flange
1" exposed flange
- Frame
2½ " in depth, made of cold rolled steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Inside panel release
Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 48 x 48 | 1219 x 1219 | 66.3 | 30.1 | 2 screwdriver-operated cylinder cam latches & 2 self-latching tool-key operated slam latches and/or ring-operated slam latches |
Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 48 x 48 | LHD-48X48-180-220 |
