EDG-GYP-180
Flush Removable Double Leaf Access Door with Drywall Bead Flange
concealed push latch, spring hinge
Designed for a more elegant yet economical solution, this access door is equipped with removable hinges and concealed push-to-close latches. The double leaf doors make it ideal for larger openings.
Technical specifications and dimensions
- Material
16-gauge cold rolled steel
- Hinge
Concealed spring and pin type hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Concealed push latches
- Flange
1 5/8" concealed flange
- Frame
2½" in depth
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| 20 x 20 | 508 x 508 | 12.1 | 5.5 | 2 |
| 22 x 22 | 559 x 559 | 14.3 | 6.7 | 2 |
| 22 x 30 | 559 x 762 | 18.2 | 8.4 | 4 |
| 22 x 36 | 559 x 914 | 21.2 | 9.6 | 4 |
| 24 x 24 | 610 x 610 | 16.2 | 7.5 | 2 |

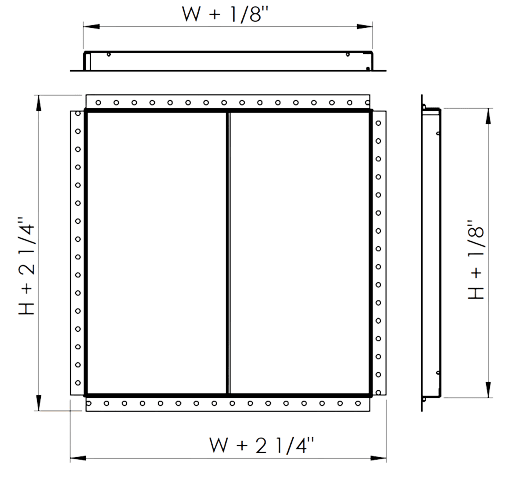

Technical drawings
Technical documentation
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 20 x 20 | |
| 22 x 22 | EDG-GYP-06X06-00-2 |
| 22 x 30 | EDG-GYP-08X08-00-2 |
| 22 x 36 | EDG-GYP-08X12-00-2 |
| 24 x 24 | EDG-GYP-10X10-00-2 |
| EDG-GYP-12X12-00-2 | |
| EDG-GYP-12X16-00-2 | |
| EDG-GYP-12X18-00-2 | |
| EDG-GYP-12X24-00-2 | |
| EDG-GYP-14X14-00-2 | |
| EDG-GYP-16X16-00-2 | |
| EDG-GYP-18X18-00-2 | |
| EDG-GYP-18X24-00-2 | |
| EDG-GYP-20X20-00-2 |
