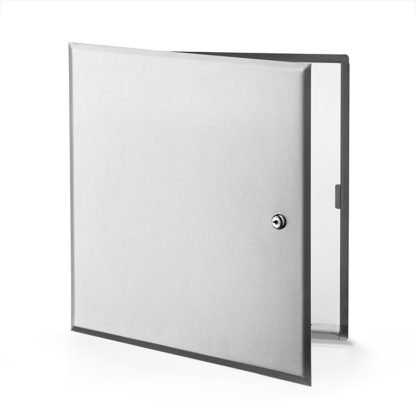

CTR-SS-10
Flush Universal Stainless Steel Access Door with Hidden Flange
key operated cylinder cam latch, pantograph hinge
Designed for a more aesthetically pleasing finish, the stainless steel panel, with its beveled edges, closes over the flange. The key operated cam latch ensures a higher level of security.
Technical specifications and dimensions
- Material
16-gauge stainless steel
- Hinge
Concealed, exclusive pantograph double arm design. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Key operated cylinder cam latch with two keys per lock
- Flange
7/8" concealed flange
- Frame
1½" in depth, made of stainless steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
Stainless steel 304 #4 (brushed finish)
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 8¼ x 8¼ | 210 x 210 | 3 | 1.4 | 1 |
| * 8¼ x 12 | 210 x 304 | 4 | 1.8 | 1 |
| * 10 x 10 | 254 x 254 | 4 | 1.8 | 1 |
| * 12 x 12 | 304 x 304 | 6 | 2.7 | 1 |
| * 14 x 14 | 355 x 355 | 7 | 3.2 | 1 |
| * 12 x 18 | 304 x 457 | 8 | 3.6 | 1 |
| * 16 x 16 | 406 x 406 | 9 | 4.1 | 1 |
| * 18 x 18 | 457 x 457 | 10 | 4.5 | 3 |
| * 18 x 24 | 457 x 609 | 13 | 5.9 | 4 |
| * 20 x 20 | 508 x 508 | 13 | 5.9 | 4 |
| * 22 x 22 | 558 x 558 | 15 | 6.8 | 4 |
| * 22 x 30 | 558 x 762 | 17 | 7.7 | 5 |
| * 22 x 36 | 558 x 914 | 19 | 8.6 | 5 |
| * 24 x 24 | 609 x 609 | 17 | 7.7 | 4 |
| * 24 x 30 | 609 x 762 | 19 | 8.6 | 5 |
| * 24 x 36 | 609 x 914 | 24 | 10.9 | 5 |
Technical drawings
Technical documentation
- Technical data sheet
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 8¼ x 8¼ | CTR-SS-8¼X8¼-10 |
| 8¼ x 12 | CTR-SS-8¼X12-10 |
| 10 x 10 | CTR-SS-10X10-10 |
| 12 x 12 | CTR-SS-12X12-10 |
| 14 x 14 | CTR-SS-14X14-10 |
| 12 x 18 | CTR-SS-12X18-10 |
| 16 x 16 | CTR-SS-16X16-10 |
| 18 x 18 | CTR-SS-18X18-10 |
| 18 x 24 | CTR-SS-18X24-10 |
| 20 x 20 | CTR-SS-20X20-10 |
| 22 x 22 | CTR-SS-22X22-10 |
| 22 x 30 | CTR-SS-22X30-10 |
| 22 x 36 | CTR-SS-22X36-10 |
| 24 x 24 | CTR-SS-24X24-10 |
| 24 x 30 | CTR-SS-24X30-10 |
| 24 x 36 | CTR-SS-24X36-10 |
