Large Opening Removable 20 GA Access Door with Drywall Bead Flange
screwdriver cam latch, spring pin hinge
Designed with a drywall bead flange, the AHU-GYP combines a solid reinforced structure with a removable panel to ensure safe handling and long-term reliability.
Technical specifications and dimensions
- Material
Cold-rolled steel, 20-gauge door and 16-gauge frame
- Hinge

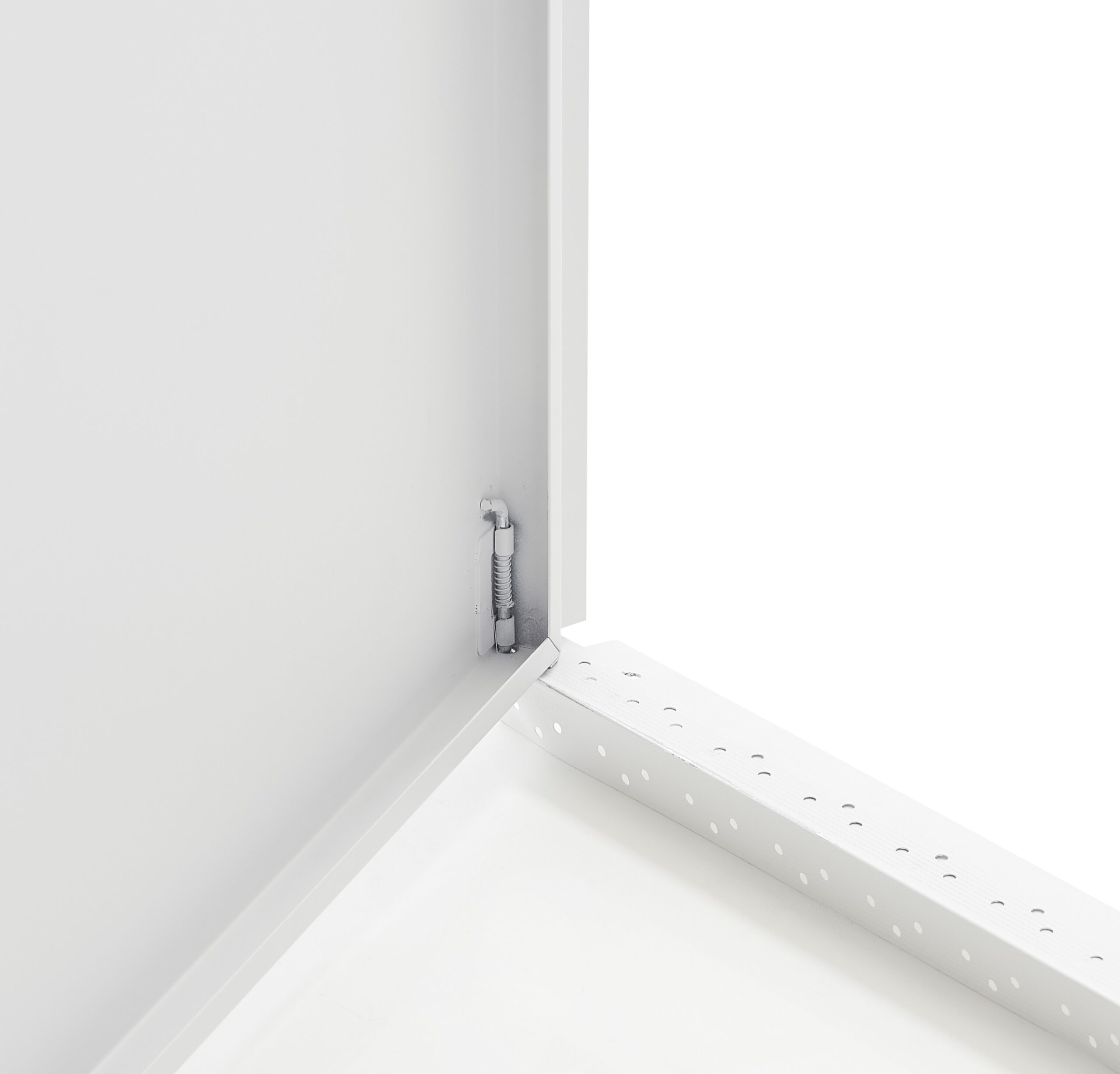

Pin and spring pin hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Screwdriver-operated cam latch
- Flange
22-gauge galvanized steel, 1 ⅛" drywall bead flange
- Frame
2 " in depth, made of cold rolled steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| 30 x 66 | 762 x 1676 | 35.0 | 15.8 | 2 |
| 30 x 72 | 762 x 1828 | 37.8 | 17.1 | 2 |
| 36 x 72 | 914 x 1828 | 43.1 | 19.5 | 2 |
| 48 x 48 | 1219 x 1219 | 37.9 | 17.1 | 2 |
Technical drawings
Technical documentation
- Technical data sheet
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
