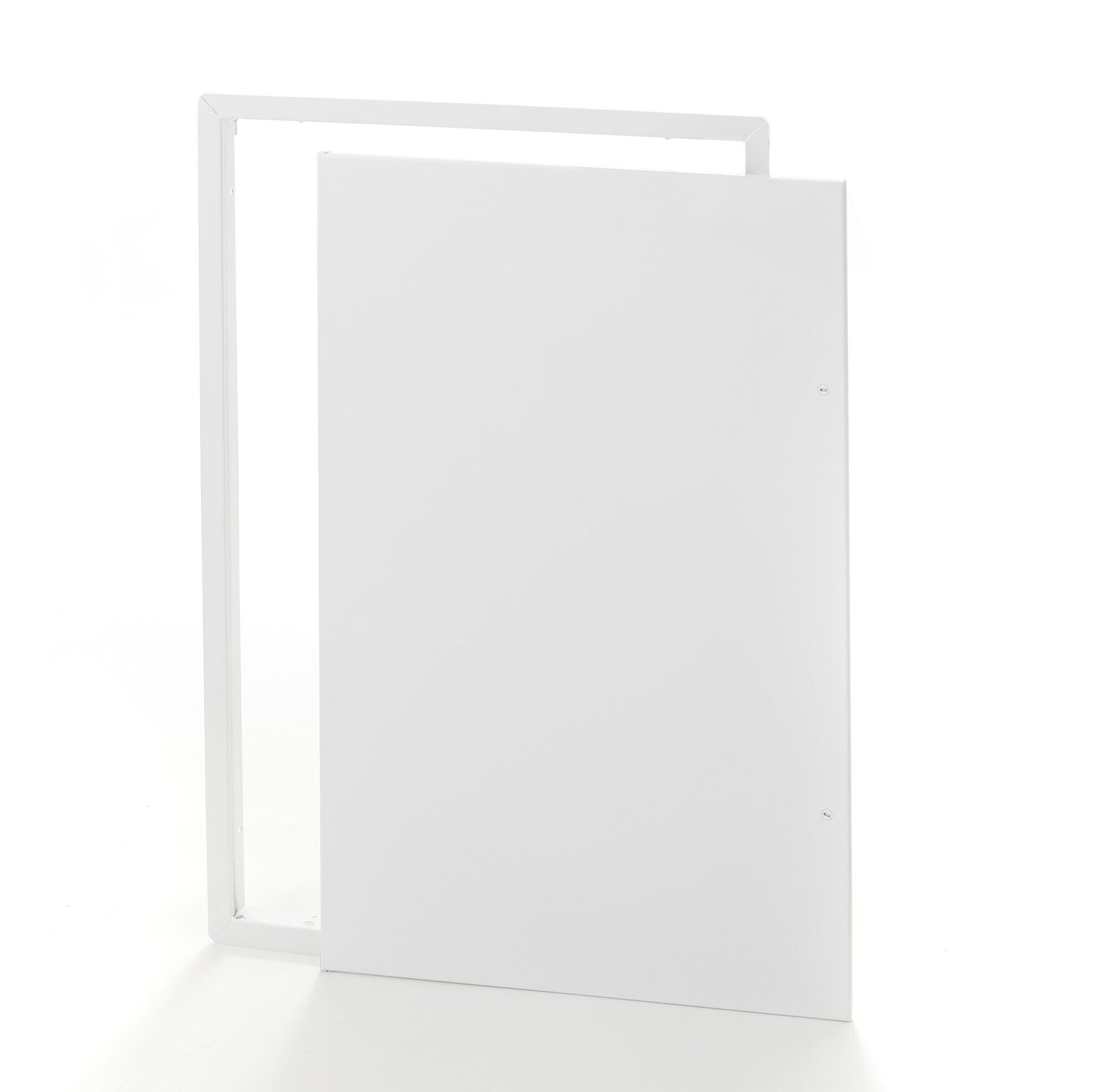

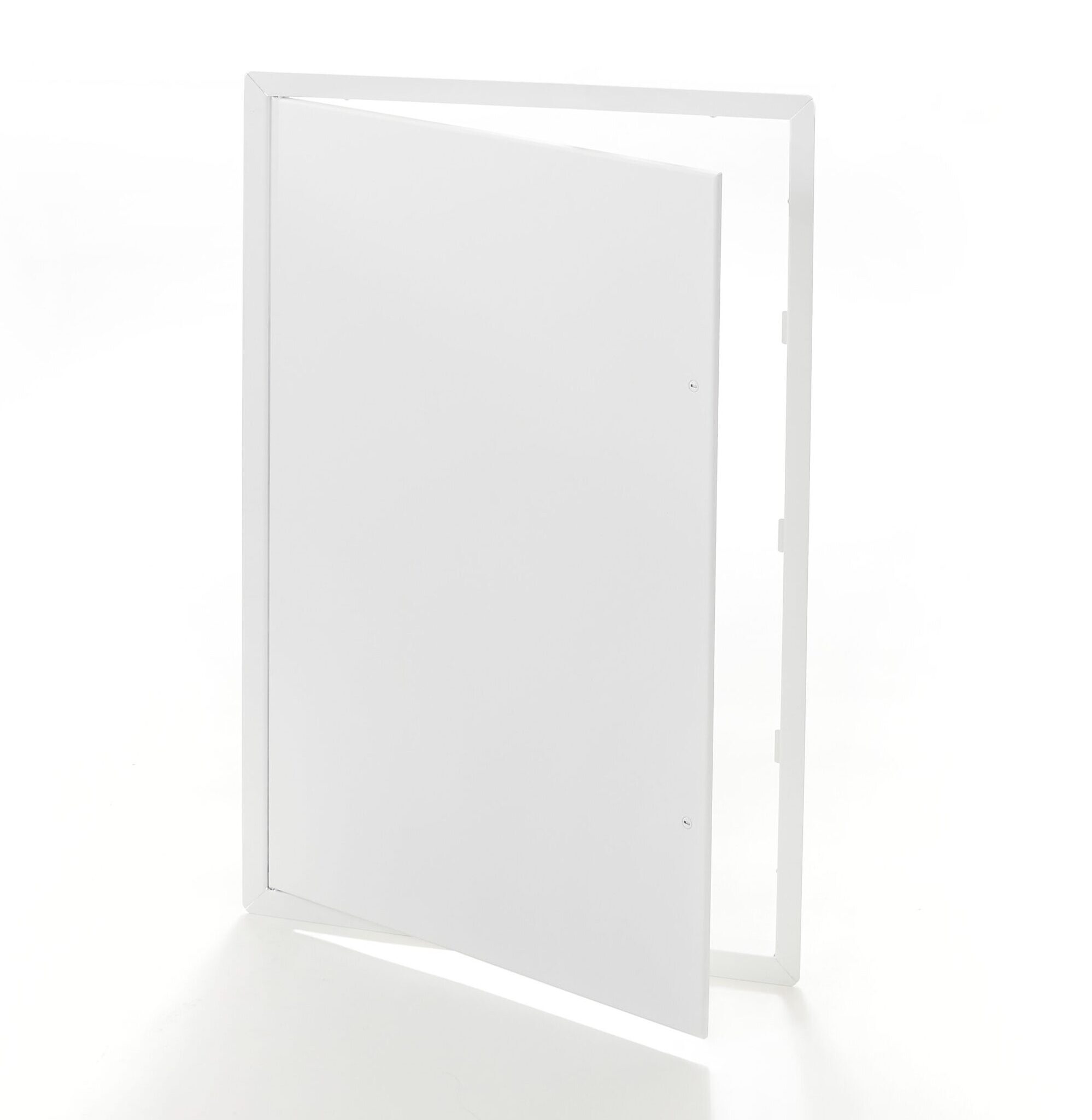

Flush Universal Removable Access Door with Exposed Flange
screwdriver operated cam latch, concealed spring pin hinge
Technical specifications and dimensions
- Material
16-gauge cold rolled steel.
- Hinge
Concealed spring pin hinge. Hinge location: Hinges must be located on the second dimension (height).

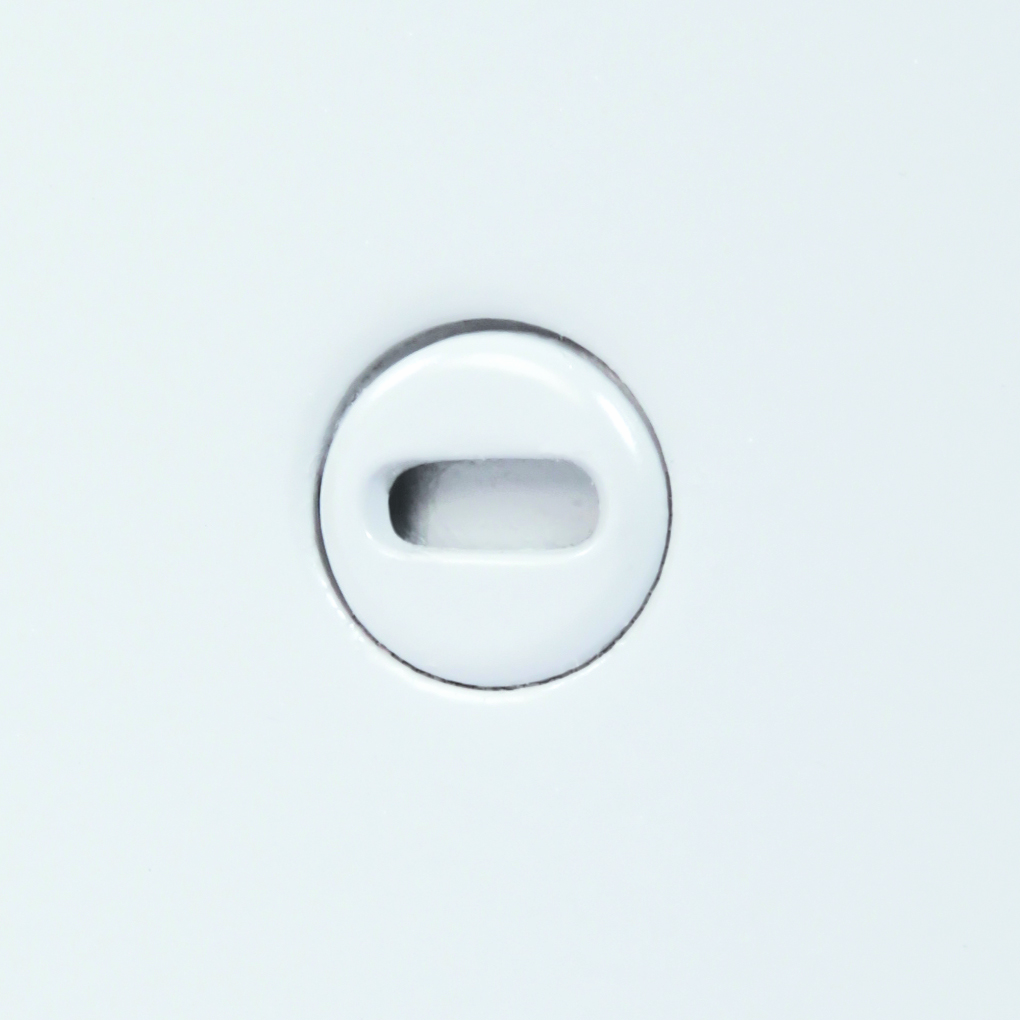

- Locking mechanism
Screwdriver-operated cam latch in cold rolled steel.
- Flange
1" exposed flange.
- Frame
1½" in depth.
- Rough opening
Door sizes + ¼ " or + 6mm.
- Finish
High quality white powder coat primer.
- Packaging
Individually wrapped, 1 door per box.
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| 22 x 30 | 558 x 762 | 18.1 | 8.2 | 2 |
| 22 x 36 | 558 x 914 | 21.2 | 9.6 | 2 |
| 24 x 30 | 609 x 762 | 19.5 | 8.9 | 2 |
| 24 x 36 | 609 x 914 | 22.8 | 10.3 | 2 |
| 24 x 48 | 609 x 1219 | 29.4 | 13.3 | 2 |
| 30 x 30 | 762 x 762 | 23.6 | 10.7 | 4 |
| 30 x 36 | 762 x 914 | 27.8 | 12.6 | 4 |
| 36 x 36 | 914 x 914 | 32.1 | 14.6 | 4 |
| 36 x 48 | 914 x 1219 | 38.9 | 17.2 | 4 |
| 48 x 48 | 1219 x 1219 | 50.0 | 22.7 | 4 |
Technical drawings
Technical documentation
- Technical data sheet
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions |
|---|
| 22 x 30 |
| 22 x 36 |
| 24 x 30 |
| 24 x 36 |
| 24 x 48 |
| 30 x 30 |
| 30 x 36 |
| 36 x 36 |
| 36 x 48 |
| 48 x 48 |
