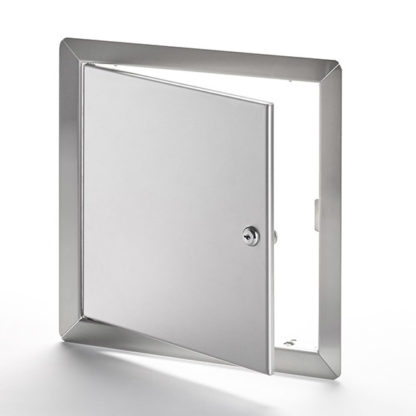

AHD-SS-10
Flush Universal Stainless Steel Access Door with Exposed Flange
key-operated cylinder cam latch, pin hinge
Designed for quick and easy installation on non-rated walls and ceilings. This model, made of stainless steel, is equipped with a key operated cam latch, which ensures a higher level of security.
Technical specifications and dimensions
- Material
16-gauge stainless steel 304 #4
- Hinge
Concealed pin hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Key-operated cylinder cam latch with two keys per lock
- Flange
1" exposed flange, made of stainless steel 304 #4
- Frame
1 ½" in depth, made of stainless steel 304 #4
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
Stainless steel 304 #4 (brushed finish)
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 6 x 6 | 152 x 152 | 2.3 | 1.0 | 1 |
| * 8 x 8 | 203 x 203 | 3.1 | 1.4 | 1 |
| * 8 x 12 | 203 x 305 | 4.2 | 1.9 | 1 |
| * 10 x 10 | 254 x 254 | 4.2 | 1.9 | 1 |
| * 12 x 12 | 305 x 305 | 5.4 | 2.5 | 1 |
| * 12 x 16 | 305 x 406 | 6.8 | 3.1 | 1 |
| * 12 x 18 | 305 x 457 | 7.6 | 3.5 | 1 |
| * 12 x 24 | 305 x 610 | 9.6 | 4.3 | 1 |
| * 14 x 14 | 356 x 356 | 6.7 | 3.1 | 1 |
| * 16 x 16 | 406 x 406 | 8.2 | 3.7 | 1 |
| * 18 x 18 | 457 x 457 | 10.0 | 4.5 | 1 |
| * 18 x 24 | 457 x 610 | 12.6 | 5.7 | 1 |
| * 20 x 20 | 508 x 508 | 11.8 | 5.4 | 1 |
| * 22 x 22 | 559 x 559 | 14.0 | 6.3 | 1 |
| * 24 x 24 | 610 x 610 | 15.9 | 7.2 | 1 |
Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 6 x 6 | AHD-SS-06X06-10 |
| 8 x 8 | AHD-SS-08X08-10 |
| 8 x 12 | AHD-SS-08X12-10 |
| 10 x 10 | AHD-SS-10X10-10 |
| 12 x 12 | AHD-SS-12X12-10 |
| 12 x 16 | AHD-SS-12X16-10 |
| 12 x 18 | AHD-SS-12X18-10 |
| 12 x 24 | AHD-SS-12X24-10 |
| 14 x 14 | AHD-SS-14X14-10 |
| 16 x 16 | AHD-SS-16X16-10 |
| 18 x 18 | AHD-SS-18X18-10 |
| 18 x 24 | AHD-SS-18X24-10 |
| 20 x 20 | AHD-SS-20X20-10 |
| 22 x 22 | AHD-SS-22X22-10 |
| 24 x 24 | AHD-SS-24X24-10 |
