AHD-GYP-90-110
Flush Access Door with Drywall Bead Flange
pinned hex head cam latch, piano hinge
The drywall bead flange, designed for drywall installation, is not exposed once the compound is applied. This model is classified as a medium level security locking mechanism. The latch requires a special pinned Allen key to open the access door.
Technical specifications and dimensions
- Material
16-gauge cold rolled steel door and frame.
- Hinge
Piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Pinned hex head cam latch. Requires a special pinned Allen key to open the access door
- Flange
22-gauge galvanized steel, 1 ⅛" drywall bead flange
- Frame
1 ½ " in depth, made of cold rolled steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 8 x 8 | 203 x 203 | 3.4 | 1.5 | 1 |
| * 10 x 10 | 254 x 254 | 4.5 | 2.0 | 1 |
| * 12 x 12 | 305 x 305 | 5.8 | 2.6 | 1 |
| * 14 x 14 | 356 x 356 | 7.1 | 3.2 | 1 |
| * 16 x 16 | 406 x 406 | 8.7 | 4.0 | 1 |
| * 18 x 18 | 457 x 457 | 10.5 | 4.8 | 1 |
| * 18 X 24 | 457 X 610 | 13.2 | 6.0 | 1 |
| * 24 x 24 | 610 x 610 | 16.6 | 7.5 | 1 |

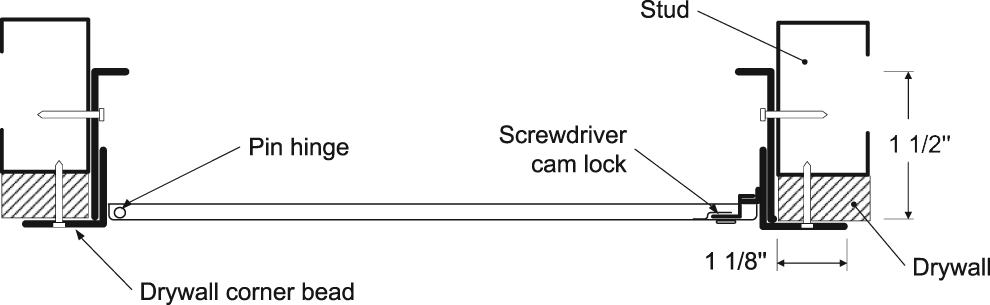

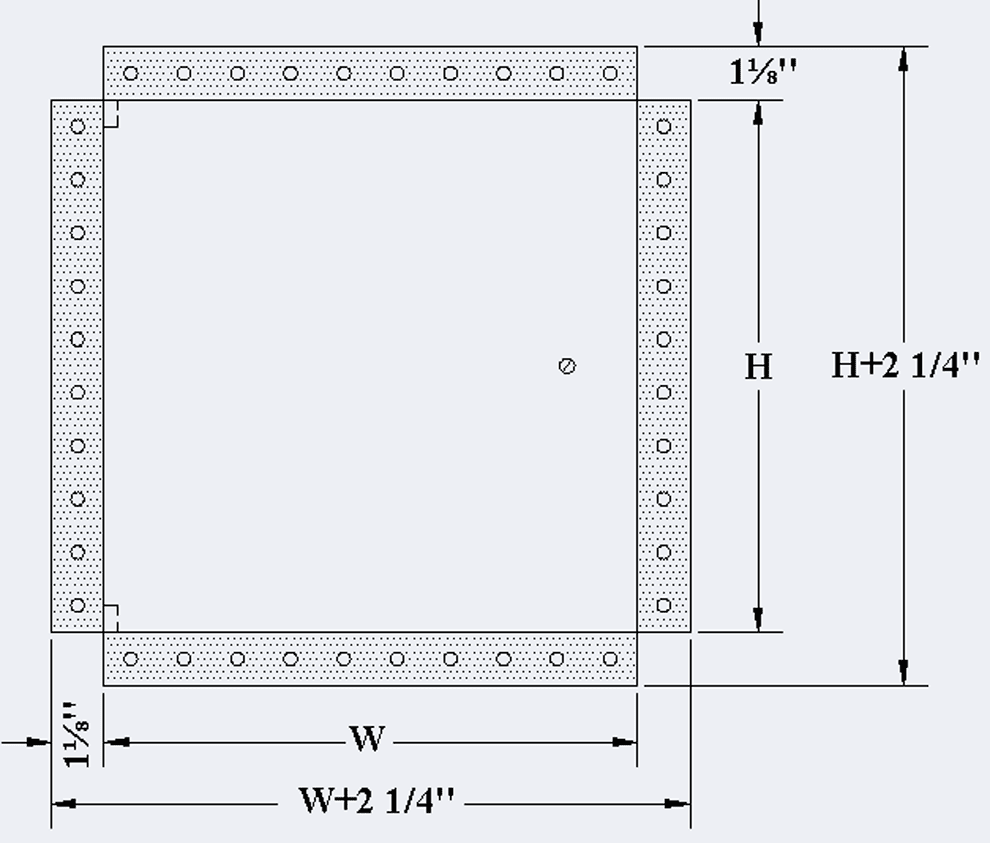

Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 8 x 8 | AHD-GYP-08X08-90-110 |
| 10 x 10 | AHD-GYP-10X10-90-110 |
| 12 x 12 | AHD-GYP-12X12-90-110 |
| 14 x 14 | AHD-GYP-14X14-90-110 |
| 16 x 16 | AHD-GYP-16X16-90-110 |
| 18 x 18 | AHD-GYP-18X18-90-110 |
| 18 X 24 | |
| 24 x 24 | AHD-GYP-24X24-90-110 |
