AHD-10-110

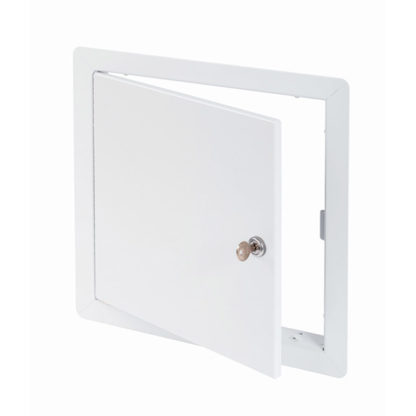

Flush Universal Access Door with Exposed Flange
key-operated cylinder cam latch, piano hinge
Designed for quick and easy installation on non-rated walls and ceilings. The piano hinge and the key operated cam latch ensure a higher level of security for larger doors.
Technical specifications and dimensions
- Material
16 gauge cold rolled steel
- Hinge
Continous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism
Key-operated cylinder cam latch | Screwdriver-operated cam latch | Number of screwdriver-operated cam latch varies on the dimensions of the door.
- Flange
1" exposed flange, made of cold rolled steel
- Frame
1 ½" in depth, made of cold rolled steel
- Rough opening
Door sizes + ¼ " or + 6mm
- Finish
High quality white powder coat primer
- Packaging
Individually wrapped, 1 door per box
| Dimensions (Inches) | Dimensions (Millimeters) | Weight (LBS) | Weight (KG) | Number of locks |
|---|---|---|---|---|
| * 22 x 30 | 559 x 762 | 17.9 | 8.1 | 1 key-operated cylinder cam latch & 1 screwdriver-operated cam latch |
| * 22 x 36 | 559 x 914 | 20.9 | 9.5 | 1 key-operated cylinder cam latch & 1 screwdriver-operated cam latch |
| * 24 x 30 | 610 x 762 | 20.0 | 9.1 | 1 key-operated cylinder cam latch & 1 screwdriver-operated cam latch |
| * 24 x 36 | 610 x 914 | 22.4 | 10.2 | 1 key-operated cylinder cam latch & 1 screwdriver-operated cam latch |
| * 24 x 48 | 610 x 1219 | 29.0 | 13.2 | 1 key-operated cylinder cam latch & 1 screwdriver-operated cam latch |
| * 30 x 30 | 762 x 762 | 23.6 | 10.7 | 1 key-operated cylinder cam latch & 3 screwdriver-operated cam latches |
| * 36 x 36 | 914 x 914 | 31.8 | 14.4 | 1 key-operated cylinder cam latch & 3 screwdriver-operated cam latches |
Technical drawings
Technical documentation
- Technical data sheet
- LEED
- MasterSpec
- Object BIM/REVIT
Availability
We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.
- Stocked in Montreal
- Stocked in Montreal & USA
- Not in stock. 5 days lead-time.
| Dimensions | Product SKU |
|---|---|
| 22 x 30 | AHD-22X30-10-110 |
| 22 x 36 | AHD-22X36-10-110 |
| 24 x 30 | AHD-24X30-10-110 |
| 24 x 36 | AHD-24X36-10-110 |
| 24 x 48 | AHD-24X48-10-110 |
| 30 x 30 | AHD-30X30-10-110 |
| 36 x 36 | AHD-36X36-10-110 |
