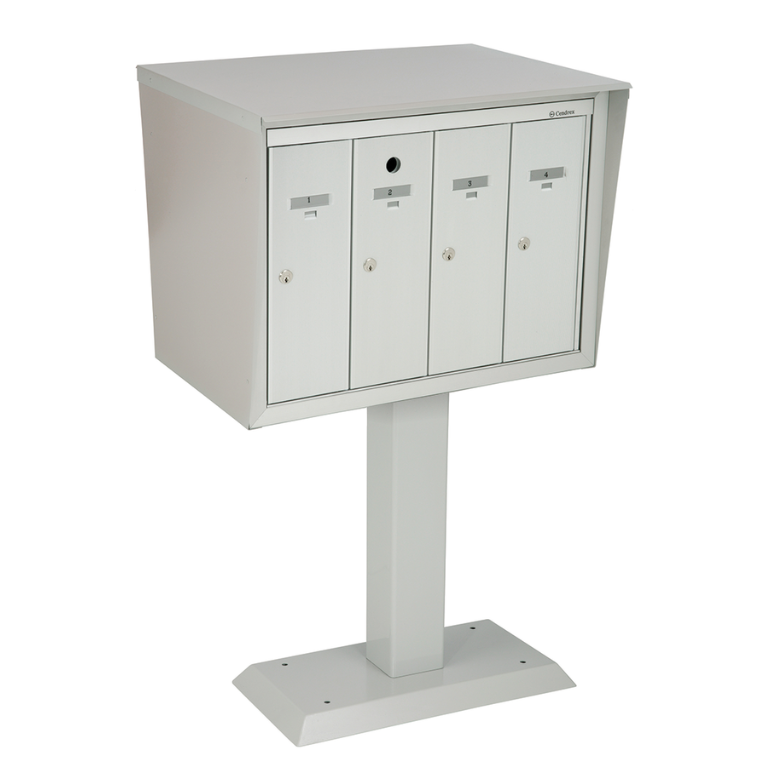

VD-170-00
Front-loading vertical mailboxes
back-to-back model with pedestal; for outdoor installation against a wall
Ideal for small apartment buildings, this model is placed back-to-back on a pedestal and is designed for outdoor installation. These mailboxes exceed Canada Post standards.
Technical specifications and dimensions
- Material
Reinforced extruded aluminum | 20 gauge galvanneal steel
- Compartment locking mechanism
Cylinder lock with 2 keys. Keyed differently.
- Unit locking mechanism
Master lock preperation. Master lock provided by Canada Post.
- Compartment dimensions
Individual: 5 ½" X 15 ¾" X 6 ½" (13.9 cm X 40.0 cm X 16.5 cm)
- Plate holder
Each box features a plate holder for identification related to its tenants. 2 1/2" X 1 1/2" (6.4 cm X 3.8 cm).
- Rough opening
No rough opening
- Finish
Natural anodized aluminum finish #628
- Packaging
1 per box
| Number of compartments | Dimensions (Inches) | Dimensions (Centimeters) | # individual compartments | Weight (LBS) | Weight (KG) |
|---|---|---|---|---|---|
| * 2 x 3 compartments | 19 1/2 X 51 9/16 X 19 1/2 | 49.9 X 131.0 X 49.5 | 3+3 = 6 individual compartments | 108.8 | 49.4 |
| * 2 x 4 compartments | 25 1/8 X 19 1/4 X 19 1/2 | 63.8 X 131.0 X 49.5 | 4+4 = 8 individual compartments | 120.6 | 54.7 |
| * 2 x 5 compartments | 30 11/16 X 51 9/16 X 19 1/2 | 78.0 X 131.0 X 49.5 | 5+5 = 10 individual compartments | 161.5 | 73.3 |
| * 2 x 6 compartments | 36 9/32 X 51 9/16 X 19 1/2 | 92.2 X 131.0 X 49.5 | 6+6 = 12 individual compartments | 173.0 | 78.5 |
