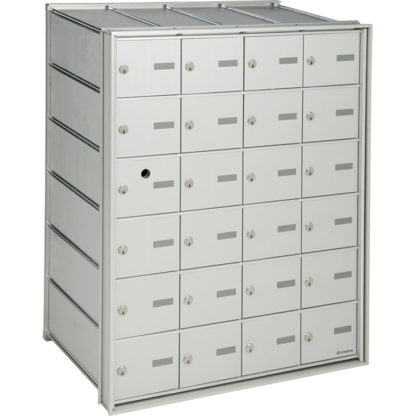

HR-2000-00
Recessed front-loading horizontal mailboxes
for in-house mail; indoor use only
For in-house mail delivery, the compartments are smaller and can be accessed using a master lock located at the front of the assembly. These compartments are individually keyed and locked. Ideal for universities, hospitals, transportation companies, mailrooms, military bases and units providing safe storage of personal belongings.
Technical specifications and dimensions
- Material
Reinforced extruded aluminum | 20 gauge galvanneal steel
- Compartment locking mechanism
Cylinder lock with 2 keys. Keyed differently.
- Unit locking mechanism
Equipped with a master lock, one compartment is dedicated to its installation.
- Compartment dimensions
Individual: 6 3/8” x 3” (16.2 cm x 7.6 cm)
- Plate holder
Each box features an engraved identification plate associated with an apartment, office or any other number requested by the client. 2" X 5/8" (5.1 cm X 1.6 cm)
- Rough opening
Mailbox width and height dimensions + 1/4" or + 6mm and minimum wall opening depth of 17 1/2" (44.5 cm).
- Finish
Natural anodized aluminum finish ⋕628
- Packaging
1 per box
| Number of compartments | Dimensions (Inches) | Dimensions (Centimeters) | # individual compartments | Weight (LBS) | Weight (KG) |
|---|---|---|---|---|---|
| * 4X5 compartments | 27 1/2 X 18 1/16 X 17 | 69.9 X 45.9 X 43.2 | 20 | 40.0 | 18.1 |
| * 4X6 compartments | 27 1/2 X 21 7/16 X 17 | 69.9 X 54.4 X 43.2 | 24 | 48.0 | 21.8 |
| * 4X7 compartments | 27 1/2 X 24 3/4 X 17 | 69.9 X 62.9 X 43.2 | 28 | 56.0 | 25.4 |
| * 4X8 compartments | 27 1/2 X 28 1/16 X 17 | 69.9 X 71.3 X 43.2 | 32 | 64.0 | 29.0 |
| * 5X5 compartments | 33 7/8 X 18 1/16 X 17 | 86.0 X 45.9 X 43.2 | 25 | 50.0 | 22.7 |
| * 5X6 compartments | 33 7/8 X 21 7/16 X 17 | 86.0 X 54.4 X 43.2 | 30 | 60.0 | 27.2 |
| * 5X7 compartments | 33 7/8 X 24 3/4 X 17 | 86.0 X 62.9 X 43.2 | 35 | 70.0 | 31.8 |
| * 5X8 compartments | 33 7/8 X 28 1/16 X 17 | 86.0 X 71.3 X 43.2 | 40 | 80.0 | 36.3 |
| * 6X5 compartments | 40 3/8 X 18 1/16 X 17 | 102.6 X 45.9 X 43.2 | 30 | 60.0 | 27.2 |
| * 6X6 compartments | 40 3/8 X 21 7/16 X 17 | 102.6 X 54.4 X 43.2 | 36 | 72.0 | 32.7 |
| * 6X7 compartments | 40 3/8 X 24 3/4 X 17 | 102.6 X 62.9 X 43.2 | 42 | 84.0 | 38.1 |
| * 6X8 compartments | 40 3/8 X 28 1/16 X 17 | 102.6 X 71.3 X 43.2 | 48 | 96.0 | 43.5 |
