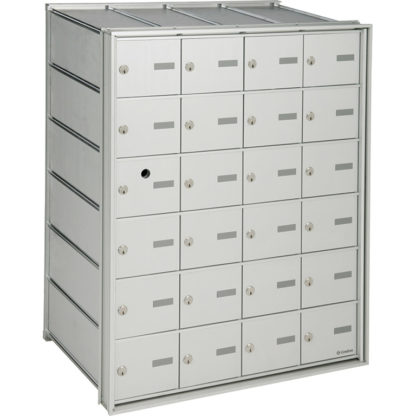

HR-1001-00

Recessed rear-loading horizontal mailboxes

meet or exceed Canada Post standards; for indoor use

Delivery personnel can access the compartments from inside the mailroom located directly behind the assembly. These compartments are individually keyed and locked. Ideal for apartment buildings, universities, hospitals, transportation companies, mail distribution centers, post offices, military bases, and other applications.

  • Installation For interior use
  • Material Aluminum | Galvanneal Steel
  • Locking mechanism Cylinder lock with two keys
  • Hinge Hinges located on the right side
  • Size Available sizes range from 1 to 6 compartments wide X 1 to 8 compartments high. Other compartment sizes are also available upon request.

Quantity

Technical specifications and dimensions

  • Material

    Reinforced extruded aluminum | 20 gauge galvanneal steel

  • Compartment locking mechanism

    Cylinder lock with 2 keys. Keyed differently.

  • Unit locking mechanism

    Equipped with a master lock, one compartment is dedicated to its installation.

  • Compartment dimensions

    Individual: 6 3/8" X 5 1/2" X 15" (16.2 cm X 14 cm X 38.4 cm)

  • Plate holder

    Each box features an engraved identification plate associated with an apartment, office or any other number requested by the client. 2" X 5/8" (5.1 cm X 1.6 cm)

  • Rough opening

    Mailbox width and height dimensions + 1/4" or + 6mm and minimum wall opening depth of 17 1/2" (44.5 cm).

  • Finish

    Natural anodized aluminum finish ⋕628

  • Packaging

    1 per box

Contact us
Number of compartmentsDimensions (Inches)Dimensions (Centimeters)# individual compartmentsWeight (LBS)Weight (KG)
* 4X5 compartments27 1/2 X 29 1/8 X 1769.9 X 74.0 X 43.22070.031.8
* 4X6 compartments27 1/2 X 34 5/8 X 1769.9 X 87.9 X 43.22484.038.1
* 4X7 compartments27 1/2 X 40 3/16 X 1769.9 X 102.1 X 43.22898.044.5
* 4X8 compartments27 1/2 X 45 3/4 X 1769.9 X 116.2 X 43.232112.050.8
* 5X5 compartments33 7/8 X 29 1/8 X 1786.0 X 74.0 X 43.22587.539.7
* 5X6 compartments33 7/8 X 34 5/8 X 1786.0 X 87.9 X 43.230105.047.6
* 5X7 compartments33 7/8 X 40 3/16 X 1786.0 X 102.1 X 43.235122.555.6
* 5X8 compartments33 7/8 X 45 3/4 X 1786.0 X 116.2 X 43.240140.063.5
* 6X5 compartments40 3/8 X 29 1/8 X 17102.6 X 74.0 X 43.230105.047.6
* 6X6 compartments40 3/8 X 34 5/8 X 17102.6 X 87.9 X 43.236126.057.2
* 6X7 compartments40 3/8 X 40 3/16 X 17102.6 X 102.1 X 43.242147.066.7
* 6X8 compartments40 3/8 X 45 3/4 X 17102.6 X 116.2 X 43.248168.076.2
* All dimensions are written in the following order: Width X Height X Depth

Inventory

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

  • Stocked in Montreal
  • Stocked in Montreal & USA
Contact us
Dimensions Product SKU
27 1/2 X 29 1/8 X 17 HR-1001-4X5
27 1/2 X 34 5/8 X 17 HR-1001-4X6
27 1/2 X 40 3/16 X 17 HR-1001-4X7
27 1/2 X 45 3/4 X 17 HR-1001-4X8
33 7/8 X 29 1/8 X 17 HR-1001-5X5
33 7/8 X 34 5/8 X 17 HR-1001-5X6
33 7/8 X 40 3/16 X 17 HR-1001-5X7
33 7/8 X 45 3/4 X 17 HR-1001-5X8
40 3/8 X 29 1/8 X 17 HR-1001-6X5
40 3/8 X 34 5/8 X 17 HR-1001-6X6
40 3/8 X 40 3/16 X 17 HR-1001-6X7
40 3/8 X 45 3/4 X 17 HR-1001-6X8
