AHD-15-110

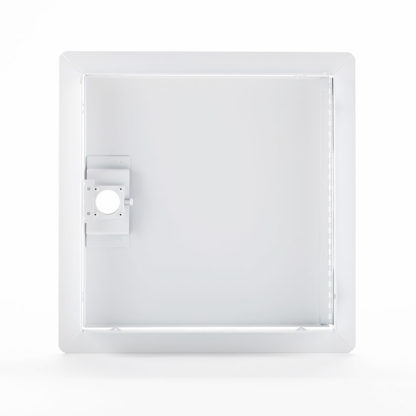

Flush Universal Access Door with Exposed Flange

mortise cam latch preparation, piano hinge

Designed for quick and easy installation on non-rated walls and ceilings. The mortise preparation will accept cylinders from most lock manufacturers such as Best, Corbin and Ilco. The door is classified as a medium level security locking mechanism.

  • Installation Walls and ceilings
  • Material Cold rolled steel
  • Locking mechanism Mortise cam latch preparation & screwdriver-operated cam latch
  • Hinge Piano hinge
  • Flange Exposed flange
  • Size Other sizes available upon request

Clear

Quantity

Specifications

  • Material

    16-gauge cold rolled steel

  • Hinge

    Continous piano hinge. Hinge location: Hinges must be located on the second dimension (height).

  • Locking mechanism

    Mortise cam latch preparation accepts cylinders of 1 5/32" in diameter | Screwdriver-operated cam latch | Number of screwdriver-operated cam latch varies depending on the dimensions of the door.

  • Flange

    1" exposed flange, made of cold rolled steel

  • Frame

    1 ½" in depth, made of cold rolled steel

  • Rough opening

    Door sizes + ¼ " or + 6mm

  • Finish

    High quality white powder coat primer

  • Packaging

    Individually wrapped, 1 door per box

Dimensions

Dimensions (Inches)Dimensions (Millimeters)Weight (LBS)Weight (KG)Number of locks
* 6 x 6152 x 1522.21.01 mortise cam latch preparation
* 8 x 8203 x 2033.11.41 mortise cam latch preparation
* 8 x 12203 x 3054.21.91 mortise cam latch preparation
* 10 x 10254 x 2544.11.91 mortise cam latch preparation
* 12 x 12305 x 3055.42.41 mortise cam latch preparation
* 12 x 16305 x 4066.73.01 mortise cam latch preparation
* 12 x 18305 x 4577.63.41 mortise cam latch preparation
* 12 x 24305 x 6109.54.31 mortise cam latch preparation
* 14 x 14356 x 3566.73.01 mortise cam latch preparation
* 16 x 16406 x 4068.13.71 mortise cam latch preparation
* 18 x 18457 x 45710.04.51 mortise cam latch preparation
* 18 x 24457 x 61012.55.71 mortise cam latch preparation
* 20 x 20508 x 50811.85.31 mortise cam latch preparation
* 22 x 22559 x 55913.96.31 mortise cam latch preparation
* 22 X 30559 x 76217.88.11 mortise cam latch preparation & 1 screwdriver-operated cam latch
* 22 X 36559 x 91420.99.51 mortise cam latch preparation & 1 screwdriver-operated cam latch
* 24 x 24610 x 61015.87.21 mortise cam latch preparation
* 24 X 30610 x 76219.99.01 mortise cam latch preparation & 1 screwdriver-operated cam latch
* 24 X 36610 x 91422.310.11 mortise cam latch preparation & 1 screwdriver-operated cam latch
* 24 X 48610 x 121929.013.11 mortise cam latch preparation & 1 screwdriver-operated cam latch
* 30 X 30762 X 76223.610.71 mortise cam latch preparation & 3 screwdriver-operated cam latches
* 36 X 36914 x 91431.714.41 mortise cam latch preparation & 3 screwdriver-operated cam latches
* All dimensions are written in the following order: Width X Height
