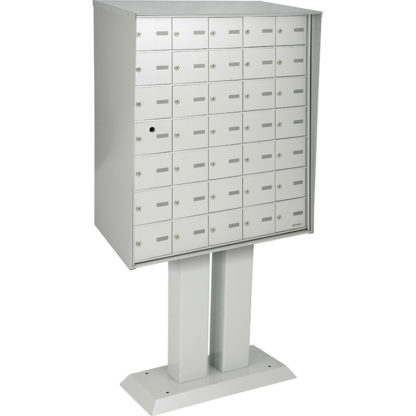

HE-500-00

Front-loading horizontal mailboxes

pedestal model for outdoor use, our locks comply with Canada Post standards

Delivery personnel can access the compartments using a master lock located in the front of the mailbox. Its compartments are individually keyed and locked. This model is designed for outdoor installation on a pedestal. Our locks comply with Canada Post standards

  • Installation For exterior use
  • Material Aluminum | Galvanneal Steel
  • Locking mechanism Cylinder lock with two keys
  • Hinge Hinges located on the right side
  • Size Available sizes range from 1 to 6 compartments wide X 1 to 8 compartments high. Other compartment sizes are also available upon request.

Quantity

Technical specifications and dimensions

  • Compliance

    Our locks comply with Canada Post standards. It is your responsibility to verify the current regulations of Canada Post in your area before placing an order

  • Material

    Reinforced extruded aluminum | 20 gauge galvanneal steel

  • Compartment locking mechanism

    Cylinder lock with 2 keys. Keyed differently.

  • Unit locking mechanism

    One compartment is dedicated to the master lock installation.

  • Compartment dimensions

    Individual: 6 3/8" X 5 1/2" X 15" (16.2 cm X 14 cm X 38.4 cm)

  • Plate holder

    Each box features an engraved identification plate associated with an apartment, office or any other number requested by the client. 2" X 5/8" (5.1 cm X 1.6 cm)

  • Rough opening

    No rough opening

  • Finish

    Natural anodized aluminum finish ⋕628

  • Packaging

    1 per box

Contact us
Number of compartmentsDimensions (Inches)Dimensions (Centimeters)# individual compartmentsWeight (LBS)Weight (KG)
* 4X5 compartments27 13/16 X 55 7/16 X 19 5/870.6 X 140.8 X 49.820143.164.9
* 4X6 compartments27 13/16 X 61 X 19 5/870.6 X 154.9 X 49.824159.472.3
* 4X7 compartments27 13/16 X 60 1/2 X 19 5/870.6 X 153.7 X 49.828169.476.8
* 4X8 compartments27 13/16 X 66 1/8 X 19 5/870.6 X 167.9 X 49.832185.684.2
* 5X5 compartments34 5/16 X 55 7/16 X 19 5/887.2 X 140.8 X 49.825192.587.3
* 5X6 compartments34 5/16 X 61 X 19 5/887.2 X 154.9 X 49.830212.496.4
* 5X7 compartments34 5/16 X 60 1/2 X 19 5/887.2 X 153.7 X 49.835220.099.8
* 5X8 compartments34 5/16 X 66 1/8 X 19 5/887.2 X 167.9 X 49.840239.9108.8
* 6X5 compartments40 13/16 X 55 7/16 X 19 5/8103.7 X 140.8 X 49.830214.697.3
* 6X6 compartments40 13/16 X 61 X 19 5/8103.7 X 154.9 X 49.836238.3108.1
* 6X7 compartments40 13/16 X 60 1/2 X 19 5/8103.7 X 153.7 X 49.842249.5113.2
* 6X8 compartments40 13/16 X 66 1/8 X 19 5/8103.7 X 167.9 X 49.848273.2123.9
* All dimensions are written in the following order: Width X Height X Depth | 1 compartment is dedicated to the master lock installation

Inventory

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

  • Stocked in Montreal
  • Stocked in Montreal & USA
Contact us
Dimensions Product SKU
27 13/16 X 55 7/16 X 19 5/8 HE-500-4X5
27 13/16 X 61 X 19 5/8 HE-500-4X6
27 13/16 X 60 1/2 X 19 5/8 HE-500-4X7
27 13/16 X 66 1/8 X 19 5/8 HE-500-4X8
34 5/16 X 55 7/16 X 19 5/8 HE-500-5X5
34 5/16 X 61 X 19 5/8 HE-500-5X6
34 5/16 X 60 1/2 X 19 5/8 HE-500-5X7
34 5/16 X 66 1/8 X 19 5/8 HE-500-5X8
40 13/16 X 55 7/16 X 19 5/8 HE-500-6X5
40 13/16 X 61 X 19 5/8 HE-500-6X6
40 13/16 X 60 1/2 X 19 5/8 HE-500-6X7
40 13/16 X 66 1/8 X 19 5/8 HE-500-6X8
